We are Supplier, Dealer, Distributor, Trader, Exporter, and Services Provider of Retrofit Emission Control Devices (RECD Devices / RECD Systems / RECD Equipments) from Pune, Maharashtra, India.
RECD Technology

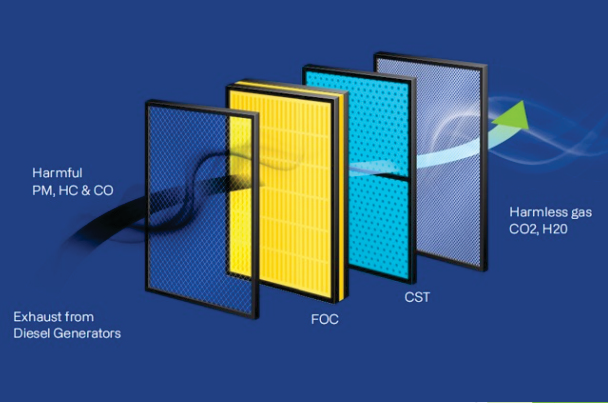

Our device uses the Cat-Con technology that reduces the harmful gases through chemical reactions. Two process takes place, One is the oxidation process and other is regeneration trap with self-cleaning technology to reduce the harmful emissions such as PM, HC & CO.
RECD Features
Our technology is tested under the required ISO 8178 5-mode D2 cycle from Automotive Research Association of India, Pune, one of the 4 CPCB recognized labs.
ADVANTAGE
- Proven Globally accepted technology.
- World's First & only RECD with ZERO Back pressure (As per ARAI Test Report).
- In line with CPCB latest norms with On Board Diagnostic Panel safety systems.
- Very high efficiency PM reduction (92.6%) along with HC and CO above 70%.
- Very less maintenance.
- CFD simulated design.
- Compact and easy to install.
- Operator warning system enabled.
- Separate land space/ concrete foundation is not required.
- Installation of RECD @ horizontal, Vertical, Diagonal position.
- Technically strong DG experienced service team.
- Service support for both RECD & DG Sets.
- Combined Annual Maintenance contract for RECD & DG Sets.

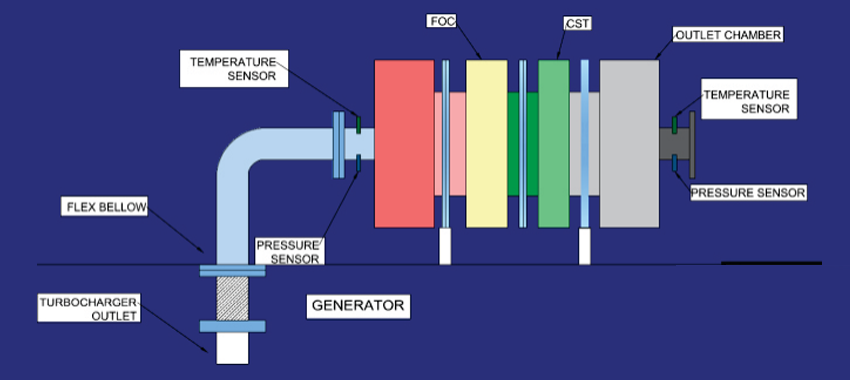

Working Principle
COMPARISON
| PLATINO'S RECD | PARAMETER | ELECTROSTATIC PRECIPITATOR |
|---|---|---|
| Above 90% | PM CAPTURE EFFICIENCY | Below 80% |
| Low | INITIAL COST | Very High |
| Zero back pressure (as per ARAI testing report) |
BACK PRESSURE | Back pressure (due to more bends & restrictions) |
| More than 70% | CO & HC CAPTURE EFFICIENCY | 0% |
| Compact (Size as equal to the silencer) |
RECD SIZE | Huge Size (Occupies more space 50% size of the DG set) |
| Very low | ERECTION COST | Very High |
| 1–3 days | TIME REQUIRED FOR ERECTION | 7–15 days |
| Negligible | OPERATIONAL COST | Moderate–High (Due to Carton soot disposal rotating & movable components with high voltage device) |
| Negligible (Self Cleaning/Continuous Regeneration Technology) |
MAINTENANCE | Collected Carbon Soot Safe Disposal Challenge – High Voltage Devices |
| 20 years (or) 20,000 hours whichever is earlier | LIFE SPAN | 6 years (or) 6,000 hours whichever is earlier |
| No visible smoke | INITIAL SMOKE | Heavy Black smoke |
| No soot collection | CARBON SOOT COLLECTION | Yes soot collections |
